HART/ Fieldbus Solutions

Bring out the real potential of smart field devices!

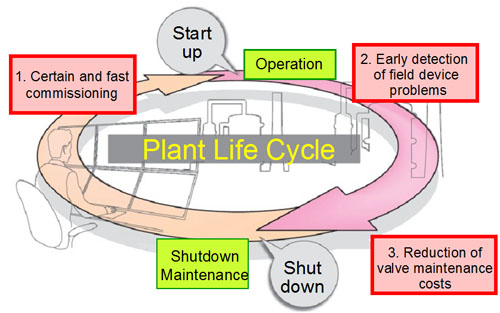

Azbil's HART/Fieldbus Solutions help to improve maintenance performance for field devices at 3 points in the plant life cycle.


Azbil's HART/Fieldbus Solutions help to improve maintenance performance for field devices at 3 points in the plant life cycle.


1. Certain and fast commissioning

By using InnovativeField Organizer (IFO) before plant startup, efficiency can be dramatically improved for tasks such as device alive checks, loop checks, control valve testing, DCS sequence program testing, and DCS interlock program testing.

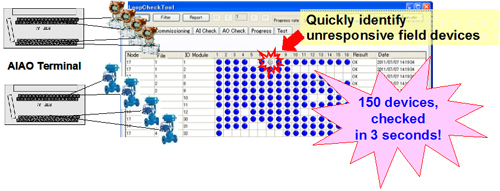

Alive check of multiple field devices can be done in seconds.

Alive check of multiple field devices can be done in seconds.

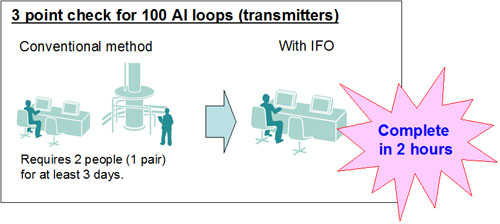

Dramatically improve work efficiency for loop checks

Dramatically improve work efficiency for loop checks

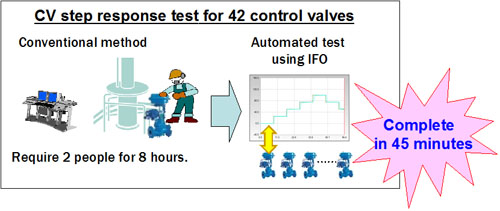

CV step response test for 42 control valves


2. Early detection of field device problems

a. Continuous device monitoring

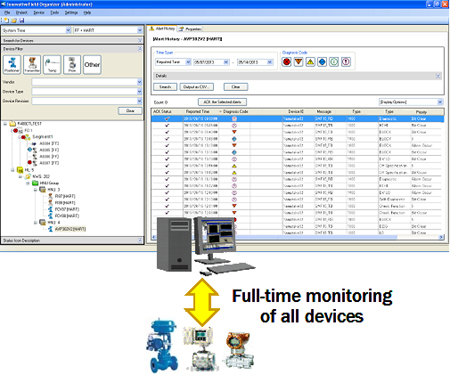

IFO monitors device status 24 hours a day, 365 days a year. A device tree (like Windows Explorer) shows a list of field devices connected to IFO, along with the current device status. If there is a problem, the device status is shown by symbols that are compliant with NAMUR NE 107.



b. Online CV diagnostics while plant is in operation

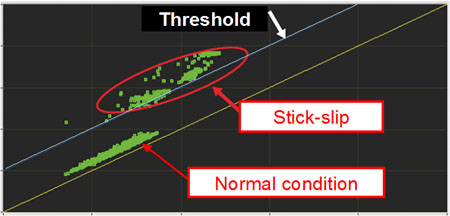

Control valve abnormalities may lead to plant shutdown. Online CV diagnostics by PLUG-IN Valstaff support early detection of abnormalities by showing the CV's condition numerically and graphically.




3. Reduction of valve maintenance costs

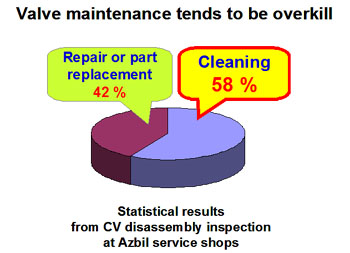

The following pie chart shows the results from CV disassembly inspections at Azbil service shops. The chart shows that roughly 60% of CVs were judged to be normal and returned to service after cleaning. Valve maintenance tends to be overkill.

CV maintenance costs should be reduced by determining which valves require disassembly inspection based on their degree of deterioration.


Valve maintenance tends to be overkill

Page Top


System configuration

  1. System configuration integrated with Azbil's DCS, Harmonas-DEO
  2. External configuration independent of DCS vendor/type/model
  3. PLUG-IN Valstaff Control Valve Maintenance Support System running on Yokogawa's CENTUM

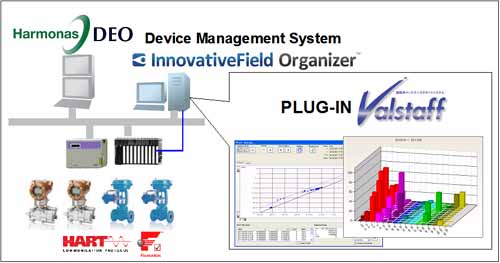

1. System configuration integrated with Azbil's DCS, Harmonas-DEO

System configuration integrated with Azbil's DCS, Harmonas-DEO


2. External configuration independent of DCS vendor/type/model

External configuration independent of DCS vendor/type/model

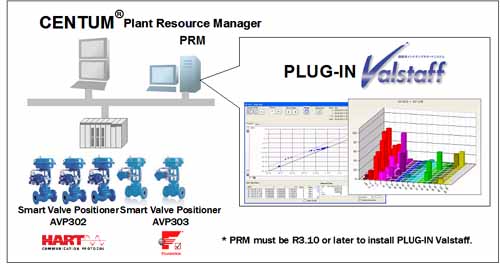

3. PLUG-IN Valstaff Control Valve Maintenance Support System running on Yokogawa's CENTUM

PLUG-IN Valstaff Control Valve Maintenance Support System running on Yokogawa's CENTUM
