Network Instrumentation Module Smart Device Gateway
Model NX-SVG

CEUL

CE(EN61326-1, For use in industial locations), cUL(UL61010-1)

The Network Instrumentation Module Smart Device Gateway* model NX-SVG is a multi-vendor IoT gateway equipped with two Ethernet ports and two RS485 ports. It supports the communication protocols of various companies’ PLCs and factory automation devices, in addition to those of Azbil-made devices, and is helpful for integrating devices into an IoT. No knowledge of communication programs or communication technology is required, and interactive data communication between devices can be realized easily without the need to create communication programs.

* A communication gateway that allows the interchange of information between various kinds of control device without programming, enabling smarter development work.



Products Introduction Video

Products Introduction Video


<Features>

  • ■Completely programless communication
  • ■Accelerates integration of devices into an IoT
  • ■Setup data can be written from a USB flash drive
  • ■Quick solutions to communication problems

-------------------

Completely programless communication

Model NX-SVG easily handles data transfer between devices from various manufacturers connected to the equipment or facility network without the use of communication programs.

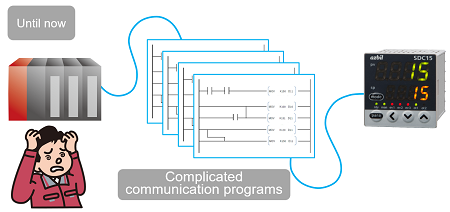

Complicated communication programs

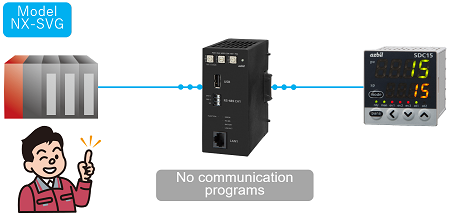

No communication programs

Simple setup-just specify the address!

Accelerates integration of devices into an IoT

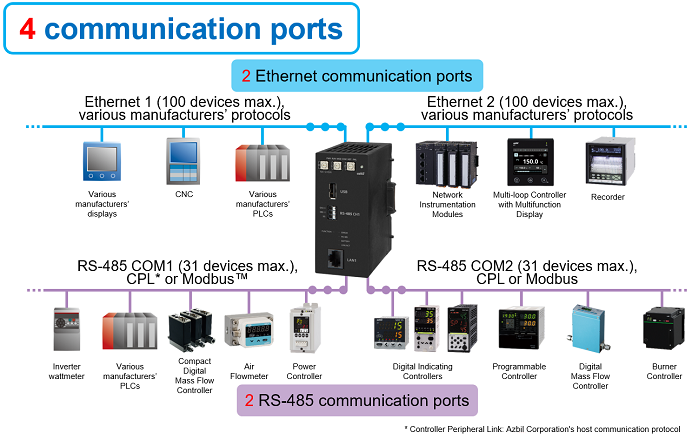

Equipped with two Ethernet channels and two RS485 channels in a compact body, model NX-SVG easily connects up to 200 devices. More than 10 communication protocols can run at the same time.

Accelerates integration of devices into an IoT

Setup data can be written from a USB flash drive

Model NX-SVG can be set up using only a USB flash drive. No setup tools are needed. Setup where a PC cannot be used is possible, and even field workers who are not accustomed to PC use can set up the gateway.

Setup data can be written from a USB flash drive

Quick solutions to communication problems

The cause of communication problems is often difficult to identify, and there is a risk that fixing the problem will take a lot of time.
Model NX-SVG saves data on communication errors internally, enabling early identification of the cause of communication problems.

Quick solutions to communication problems

Communication error history
